Use:

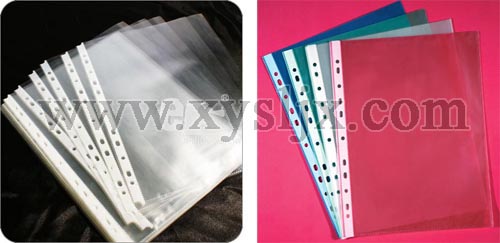

It is suitable for producing sheet protector
Описание:

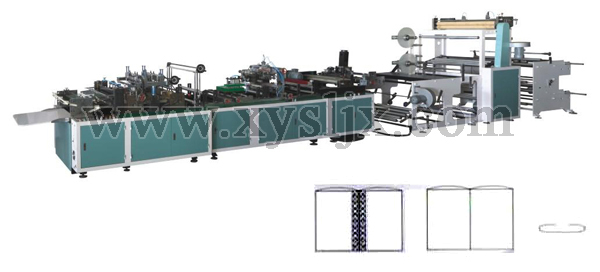

1. This is a double folding and twin lines data bag sealing cutting machine(sheet protector)
2. It adopts PLC system controller as main control YASKAWA AC servo motor for dead length and touched human machine interface.
3. From sheet material to the final products that the manufactory process is that through double folding insert white stripe, ultrasonic roll sealing punching and then cross sealing and cutting to finish automatic.
4. The machine has high capacity, for it can make two bags at the same time, the machine can save a lot of raw material, for it adopts the sheet material. Therefore it is an ideal equipment for stationary industry.
Технические характеристики:
|
Модель |
ZYD-500B |
|
Ширина пакета, мм |
235x2 |
|
Длина пакета, мм |
310-500 |
|
Толщина материала, мм |
0.035-0.1 |
|
Производительность, шт/мин |
(60-110)x2 |
|
Мощность, кВт |
15 |
|
Габаритные размеры (ДхШхВ), мм |
10000x1320x2000 | |
